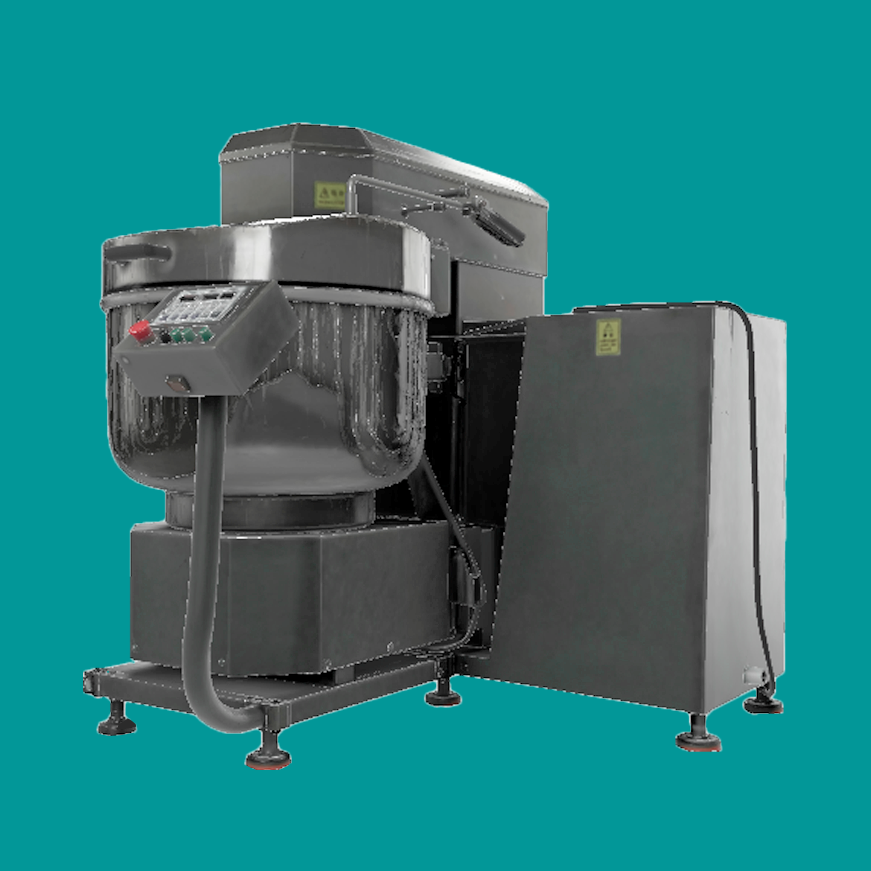

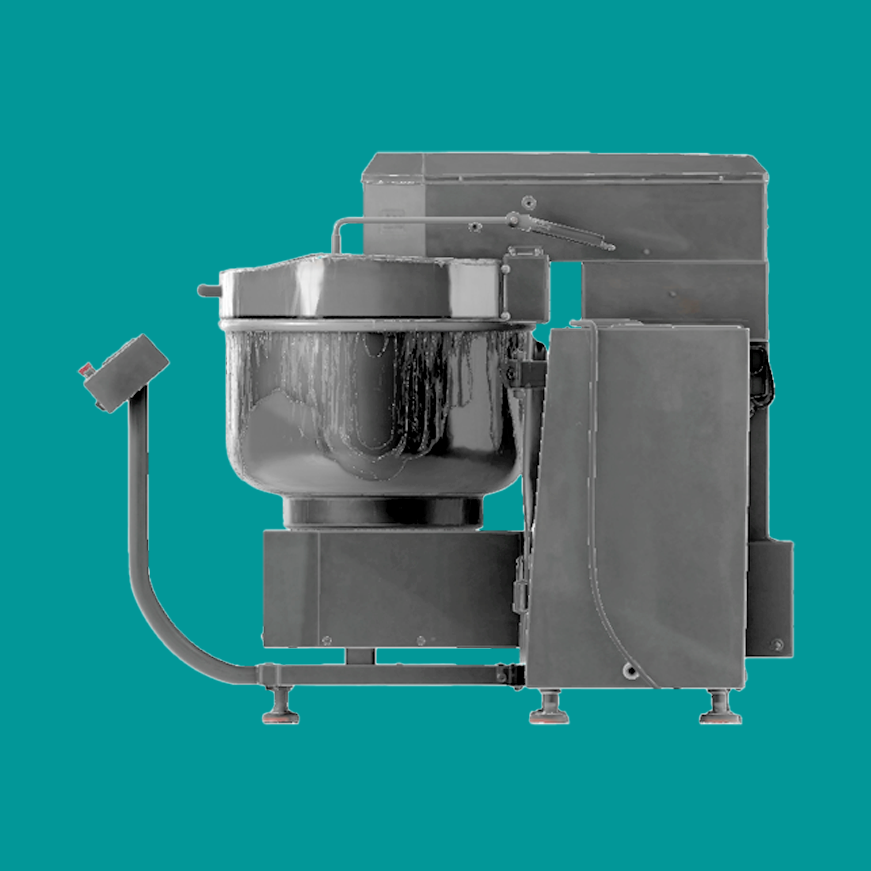

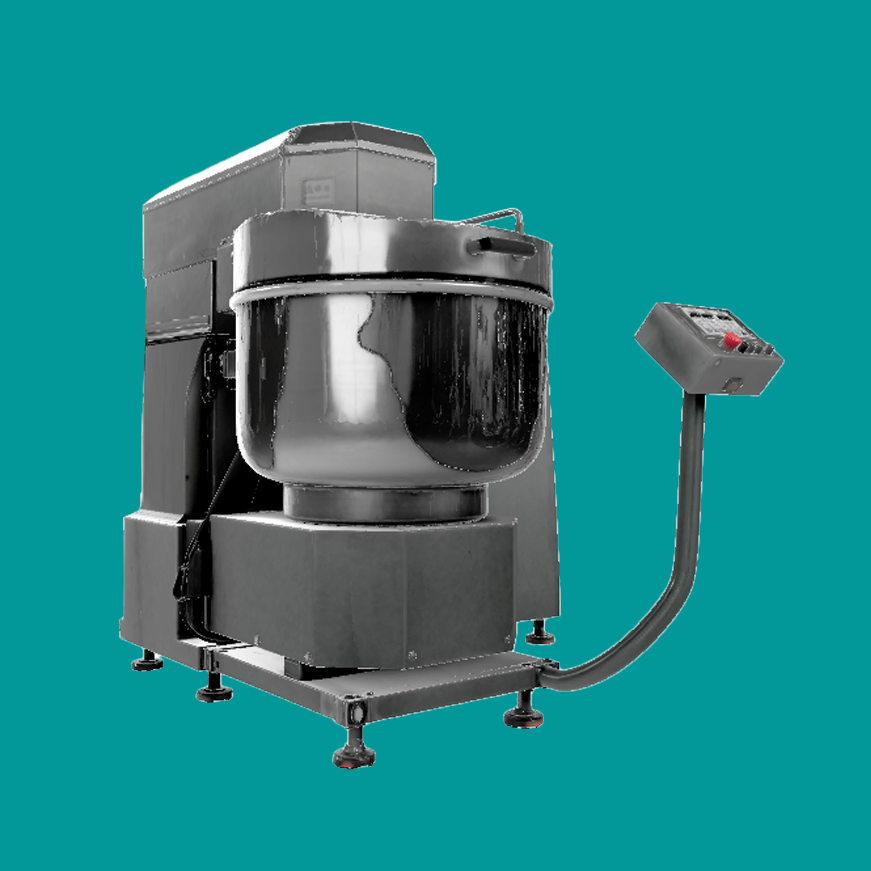

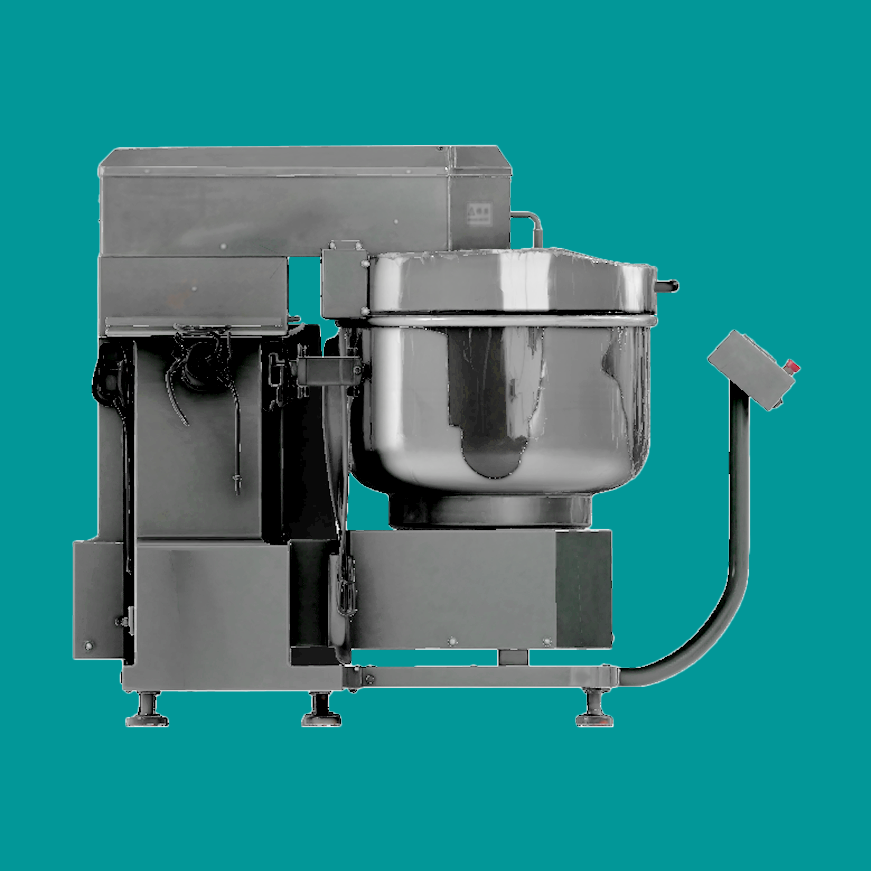

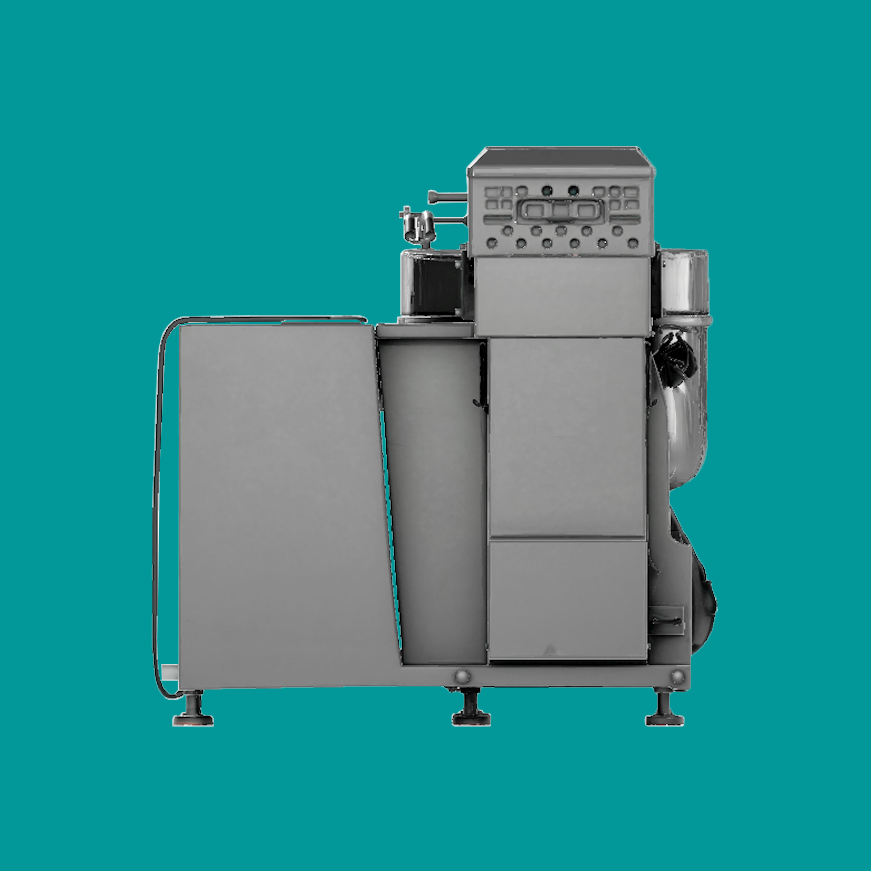

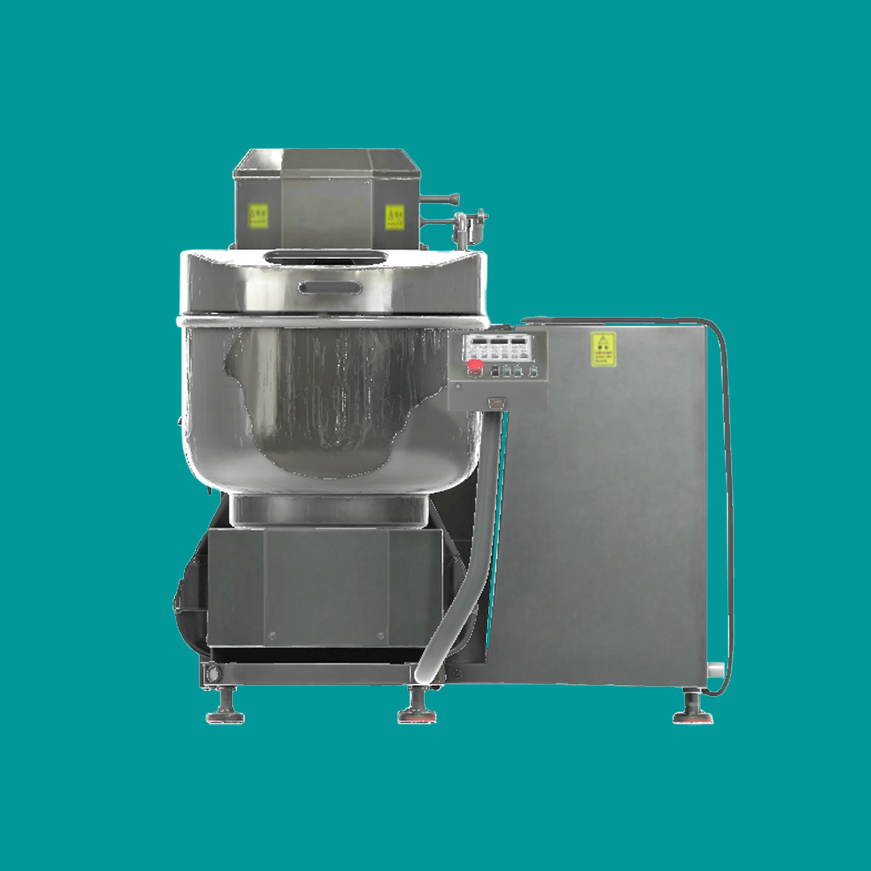

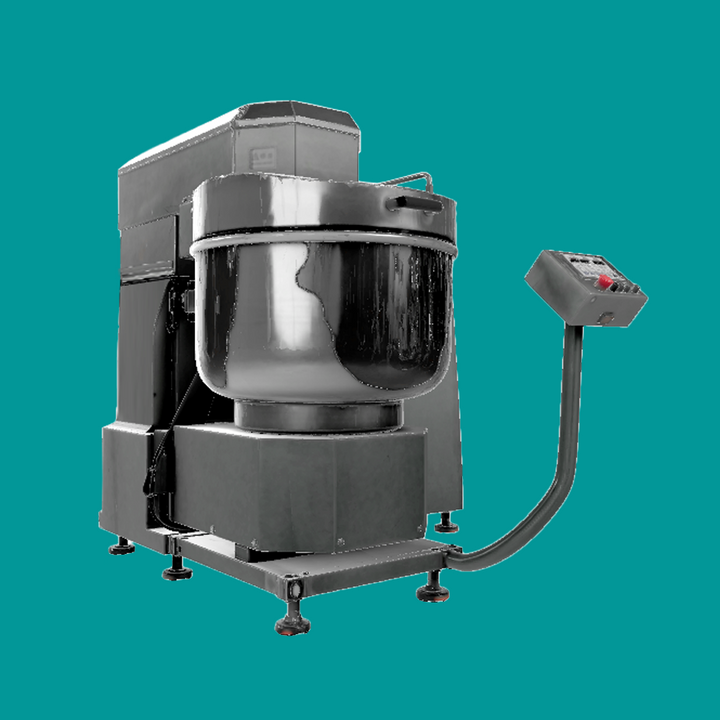

LJ-75F 75KG Vertical Dual-Speed Dual-Action Tipping Bowl Dough Mixer, Commercial Full-Cover Heavy Duty Dough Kneader
Industrial Large-Capacity Tipping Bowl Dough Mixer | 304 Stainless Steel Bowl | Imported Brand Components | Ideal for Bakeries & Central Kitchens
1. Specifications
|
Item |
Parameter |
|
Model |
LJ-75F |
|
Max. Flour / Dough Weight |
75kg / 120kg |
|
Bowl Capacity |
200L |
|
Voltage / Total Power |
380V / 13KW (Hook motor 9KW + Bowl motor 2KW) |
|
Net / Gross Weight |
930KG / 1000KG |
|
Mixing Speed |
130/260 r/min (dual speed adjustable) |
|
Bowl Size (Inner Diameter * Depth) |
450mm * 800mm |
|
Bowl Wall Thickness |
2.5mm |
|
Bowl Material |
Food-grade 304 Stainless Steel |
|
Packing Size (L*W*H) |
1670mm * 1490mm * 1430mm |
|
Foot Adjustment Range |
±40mm (height adjustable) |
2. Core Components
|
No. |
Part |
Brand / Specification |
|
1 |
Bowl |
304 stainless steel, 2.5mm wall thickness, 1000KG load capacity |
|
2 |
Hook Motor |
Taiwan Yongyuan 9KW |
|
3 |
Bowl Motor |
Taiwan Yongyuan 2KW |
|
4 |
Transmission Belt |
Gates |
|
5 |
Bearing |
NSK (Japan) |
|
6 |
AC Contactor |
Schneider |
|
7 |
Control Panel |
Aidesen |
3. Product Features
1. Tipping Bowl Design: The bowl can be tilted to discharge dough easily, greatly reducing manual handling effort, ideal for mass production.
2. Dual-Action Dual-Speed Kneading System: The spiral hook and bowl rotate simultaneously in both directions, with 130/260r/min dual speed options. Low speed for mixing, high speed for kneading, fully develops gluten for consistent dough quality.
3. Food-Grade 304 Stainless Steel Bowl: 2.5mm thick wall, 450mm inner diameter * 800mm depth, corrosion-resistant, easy to clean, meets food production hygiene standards.
4. Top-Tier Brand Components: Taiwan Yongyuan motors, Gates transmission belt, Japanese NSK bearings, Schneider contactor, reliable core parts for stable heavy-duty operation and low failure rate.
5. Full-Cover Industrial Structure: Fully enclosed protective design, prevents accidental contact during operation, robust and durable for continuous use in central factories and large bakeries.
6. Adjustable Feet Design: Feet support ±40mm height adjustment to adapt to uneven floors, ensuring stable operation with low vibration and noise.
7. Large Capacity Output: Max 75kg flour / 120kg dough per batch, 200L large bowl, meets commercial high-volume production needs.
4. Selling Points
l ✅ Tipping bowl for easy dough discharge, no manual scooping, improves efficiency and reduces labor intensity
l ✅ Dual-action dual-speed kneading, excellent gluten development for bread, pizza, steamed buns and all kinds of dough
l ✅ 304 stainless steel thick-wall bowl, food-grade safe, durable and easy to clean
l ✅ Top brand core components, long service life and low maintenance cost
l ✅ 75KG large capacity, 120kg dough per batch, perfect for central factories, large bakery chains and catering distribution centers
l ✅ Full-cover safety protection, enclosed structure prevents accidental contact during operation
l ✅ Adjustable feet for stable operation on uneven floors, low vibration and noise
l ✅ Independent dual motor drive, 9KW + 2KW powerful power, no jamming under heavy load
5. Keywords
75KG tipping bowl dough mixer, vertical dual speed dual action dough mixer, commercial heavy duty dough kneader, LJ-75F dough mixer, 200L dough mixing machine, 304 stainless steel dough mixer, bakery dough mixer, central kitchen baking equipment, industrial tipping bowl kneader, full-cover dough mixer
